Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits

Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits

$1,947.24 USD
$1,947.24 USD
Sale Sold out
Shipping calculated at checkout.

Wilwood Forged Narrow Superlite 4R Big Brake Rear Parking Brake Kits

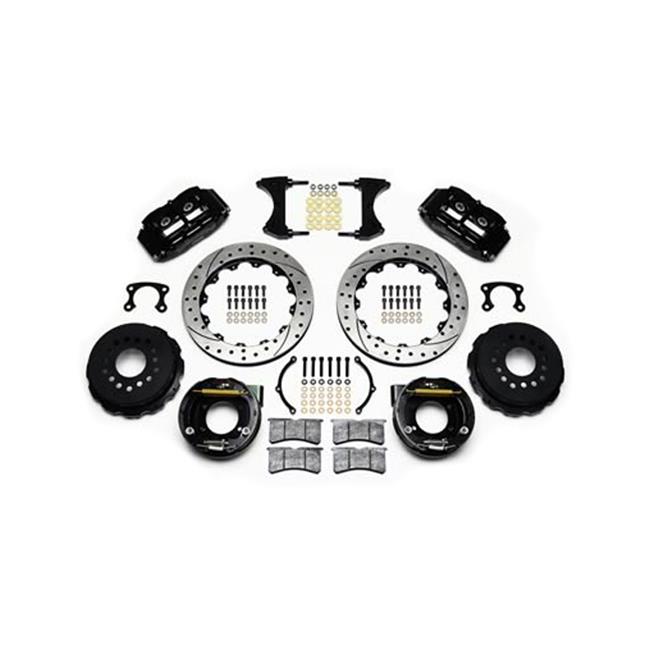

Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits are the perfect addition to front Big Brake upgrades for incredible stopping power. These disc brake kits feature FNSL4R 4-piston oversize forged billet aluminum calipers, 13 or 14 in. 2-piece premium rotors, and high performance BP-10 compound pads. Also included is a high-quality, drum-style parking brake assembly. The neatly hidden internal shoe system provides a clean installation, with superior static holding power for parking. Wilwood Forged Narrow Superlite 4R Big Brake rear parking brake kits provide the extra power to reel in your beast. Order the kit designed for your vehicle application.

Position:
Rear
Front Rotor Included:
No
Brake Rotor Bolt Pattern (in.):
Triple 5 x 4.50 in./5 x 4.75 in./5 x 5.00 in.
Brake Rotor Bolt Pattern (mm):
Triple 5 x 114.30mm/5 x 120.65mm/5 x 127.00mm
Differential Case Design Type:
Ford 9 in.
Axle Housing Flange Style:
Big Ford New Style/Torino (3.562 in. x 2.00 in.)
Rear Rotor Included:
Yes
Rear Rotor Style:
Cross-drilled/Slotted surface
Rear Rotor Construction:
Vented
Rear Rotor Diameter:
12.90 in./327.66mm
Rear Rotor Thickness (in.):
1.10
Front Caliper Included:
No
Rear Caliper Included:
Yes
Rear Caliper Piston Quantity:
Four
Rear Caliper Material:
Forged billet aluminum
Rear Caliper Color:
Black
Brake Pads Included:
Yes
Friction Material Name:
BP-10
Parking Brake Provision:
Yes
Parking Brake Style:
Internal drum
Offset (in.):
2.500 in.
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No
Remanufactured:
No
Brake Hoses Included:
No
Quantity:
Sold as a kit.
