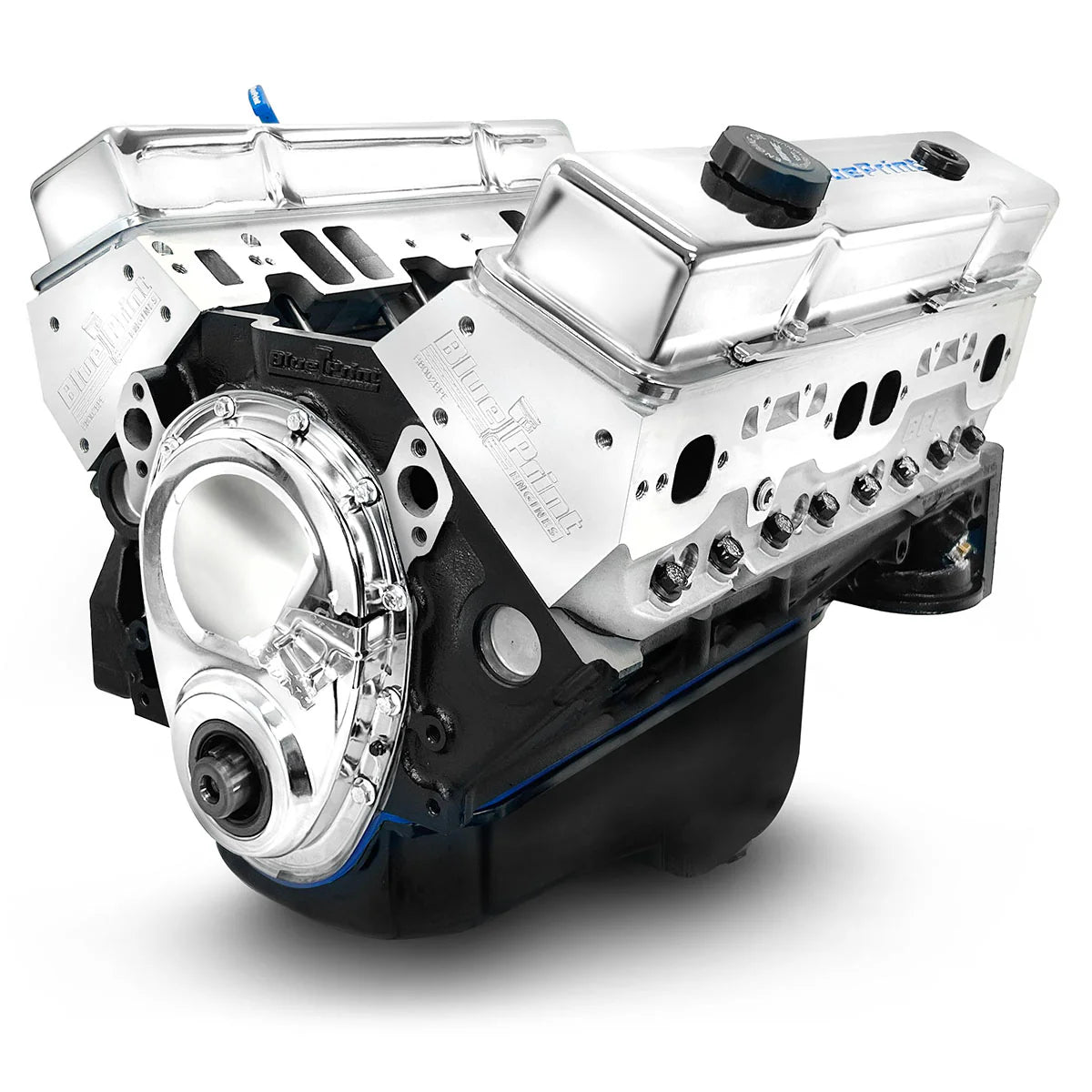

GM Small Block Compatible 350 C.I. Engine - 390HP - Long Block

• Horsepower & Torque: 390 Horsepower / 410 FT. LBS. Torque
• Compression Ratio: 9.2:1
• Aluminum Heads
• Hydraulic Roller Cam
• Cast Crankshaft

• Hypereutectic Pistons

BLOCK:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• 4-Bolt Main
• 4.000" Bore
• 1-Piece Rear Main Seal
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• Drilled and Tapped for Clutch Linkage

ROTATING ASSEMBLY:

• Cast Crankshaft

• 3.480" Stroke
• Forged 5.700" Connecting Rods
• Hypereutectic Pistons
• Internally Balanced Front - Externally Balanced Rear

CYLINDER HEADS:

• BluePrint Aluminum Cylinder Heads - H8002K
• 64cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 195cc Intake / 75cc Exhaust Runners

CAM SPECS:

• Cam Type: Roller
• .495 Intake /.502 Exhaust Lift
• 220 Intake / 224 Exhaust Duration
• @.050-114 Degree Lobe Separation

IGNITION TIMING:

• 32 Degrees Total at 3500 RPM

ALSO INCLUDES:

• Rear Sump Oil Pan
• Timing Cover
• Valve Covers
• Dipstick

Recommended Break in Oil: BPP710

Recommended Service Oil: BPP10W30

Recommended Oil Filter: BPP51061

NOTES:

• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.

Mfg. Part Number - BP350CT
