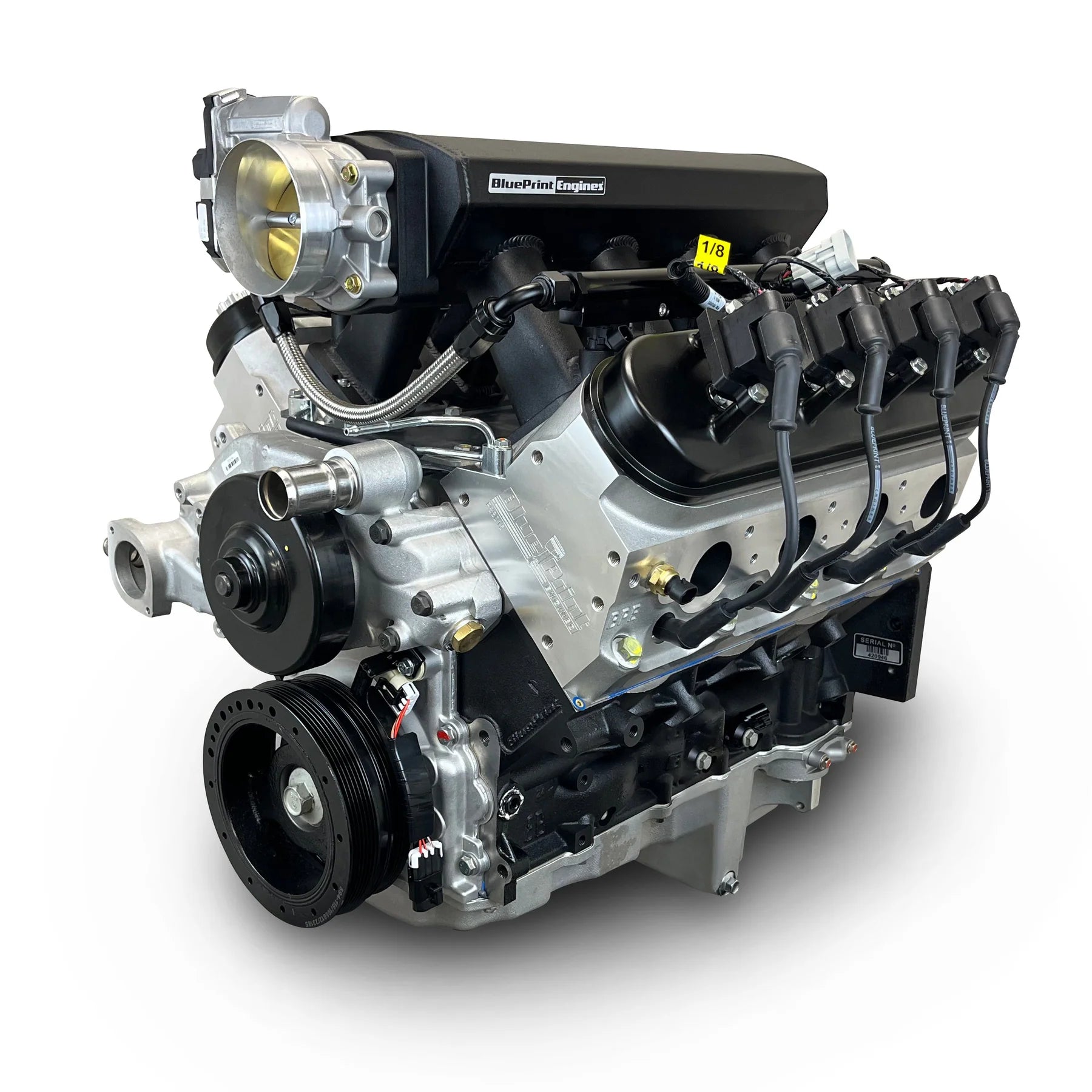

GM LS Compatible 376 C.I. ProSeries Engine - 525HP - Based Dressed - Fuel Injected, BluePrint Engines

• Horsepower & Torque: 525 Horsepower / 460 FT LBS
• Compression Ratio: 10.7:1
• BluePrint LS3 Aluminum Heads
• Hydraulic Roller Cam

Block:

• BluePrint Engines High Strength Cast Iron (LSX Style) Block

• Increased Deck Thickness and Strength Webbing
• Extended Cylinder Skirt
• Priority Main Oiling
• 4.0662" Bore
• 6-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design
• Utilizes OEM LS3 Front and Rear Covers

ROTATING ASSEMBLY:

• Nodular Iron Crankshaft
• 3.622" Stroke
• 6.098" Connecting Rods w/ 150,000 PSI Bolts
• Hypereutectic Pistons
• Internally Balanced Front and Rear

CYLINDER HEADS:

• BluePrint LS3 Aluminum Cylinder Heads - PS8015
• 69cc Chamber
• 2.165" Intake / 1.590" Exhaust Valves
• 259cc Intake / 102cc Exhaust Runners

CAM SPECS:

• Cam Type: Roller Cam
• .612 Intake / .585 Exhaust Lift
• 225 Intake / 238 Exhaust Duration
• @.050-113 Degree Lobe Separation

IGNITION TIMING:

• Controlled by Customer Sourced Engine Management. (Not Included)

ALSO INCLUDES:

• Valve Covers
• LS Swap Oil Pan
• Timing Cover
• Drive by Wire Throttle Body
• LS3 Fabricated Aluminum Intake Manifold
• Injectors and Fuel Rail Kit
• Coil Packs
• Spark Plugs
• Water Pump
• Harmonic Balancer


NOTES:

• This engine requires a non-weighted flex plate/flywheel.
• Recommended fuel: 91 Octane.
• BluePrint Engines recommends a 2200+ RPM stall converter.
• Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars.
• Not for use in pollution-controlled vehicles or in dry sump applications.
• Does NOT include engine controller. This is a dressed long block only. No Harness/ECU provided. This is for customers wishing to use their own engine controller package.

Mfg. Part Number - PSLS37650CTF
