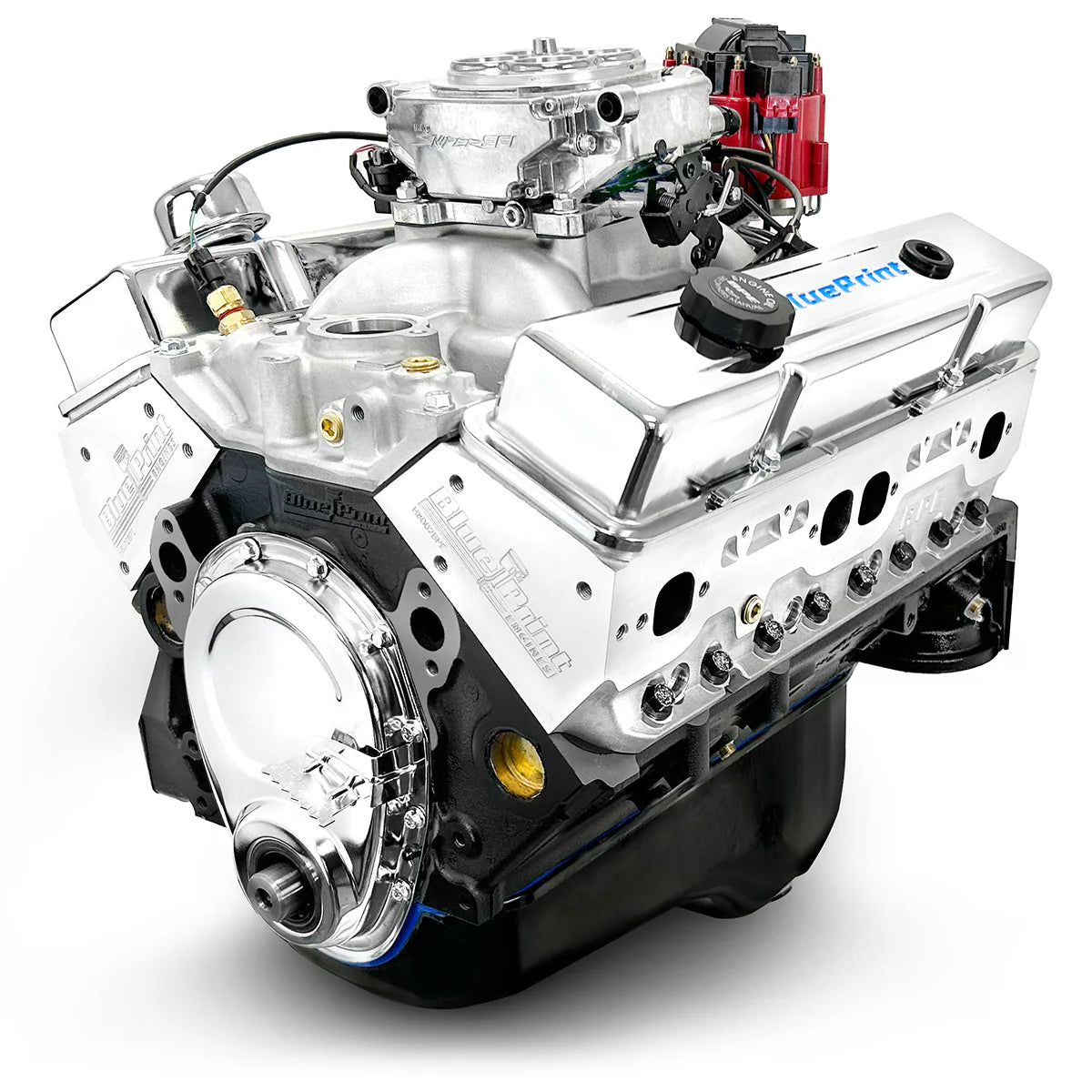

GM Compatible Small Block Compatible 350 C.I. Engine - 341HP - Base Dressed - Fuel Injected, BluePrint Engines

DESCRIPTION:

• Horsepower & Torque: 341 Horsepower / 371 FT. LBS. Torque
• Compression Ratio: 9.2:1
• Aluminum Heads
• Hydraulic Roller Cam
• Cast Crankshaft

• Hypereutectic Pistons

BLOCK:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• 4-Bolt Main
• 4.000" Bore
• 1-Piece Rear Main Seal
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• Drilled and Tapped for Clutch Linkage

ROTATING ASSEMBLY:

• Cast Crankshaft

• 3.480" Stroke
• Forged 5.700" Connecting Rods
• Hypereutectic Pistons
• Internally Balanced Front - Externally Balanced Rear

CYLINDER HEADS:

• BluePrint Aluminum Cylinder Heads - H8002K
• 64cc Chamber
• 2.02" Intake / 1.60" Exhaust Valves
• 195cc Intake / 75cc Exhaust Runners

CAM SPECS:

• Cam Type: Roller
• .477 Intake / .471 Exhaust Lift
• 202 Intake / 212 Exhaust Duration
• @ .050-115 Degree Lobe Separation

IGNITION TIMING:

• 32 Degrees Total at 3500 RPM

ALSO INCLUDES:

• Valve Covers
• Rear Sump Oil Pan
• Timing Cover
• Aluminum Intake

• HEI Distributor

• Holley Sniper II EFI

Recommended Break in Oil: BPP710

Recommended Service Oil: BPP10W30

Recommended Oil Filter: BPP51061

NOTES:

• This engine is an excellent cruiser and daily driver engine.  This engine makes up to 18 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel
• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.

Mfg. Part Number - BP350CTF
